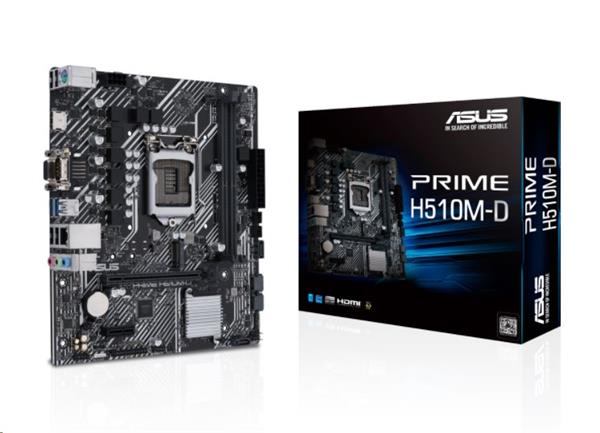

ASUS PRIME H510M-D soc.1200 H510 DDR4 mATX M.2 COM D-Sub HDMI








  • ASUS PRIME H510M-D soc.1200 H510 DDR4 mATX M.2 COM D-Sub HDMI
  • ASUS PRIME H510M-D soc.1200 H510 DDR4 mATX M.2 COM D-Sub HDMI









Záruka:
36 Mes.
Kód:
ASUSPRIMEH510M-D
Part No.:
90MB17M0-M0EAY0
EAN:
4711081127468
Výrobca:

ASUS

RP:
0.10; DPH: 20%
Bez DPH
73.84 EUR
S DPH
88.61 EUR














  •
  •


Podrobnosti o produkte





Popis produktu:

Základná doska Intel® H510 (s päticou LGA 1200) veľkosti micro ATX s rozhraním PCIe 4.0, M.2 slotom s prenosovou rýchlosťou až 32 Gb/s, portom Intel® Ethernet s prenosovou rýchlosťou až 1 Gb/s, porty HDMI, D-Sub, USB-A 3.2 Gen 1, rozhraním SATA s prenosovou rýchlosťou až 6 Gb/s, portom COM, konektorom LPT a konektorom pre pripojenie RGB osvetlenia
Pätica Intel® LGA 1200: pripravená na procesory Intel® 11. a 10. generácie
Extrémne rýchle pripojenie: rozhranie PCIe 4.0, slot M.2 s prenosovou rýchlosťou až 32 Gb/s, ethernetový port Intel® s prenosovou rýchlosťou až 1 Gb/s a USB 3.2 Gen 1
Komplexné chladenie: Chladič čipsetu (PCH) a nástroj Fan Xpert
Technológia 5X Protection III: niekoľko hardvérových opatrení zabezpečuje celkovú ochranu

CPU
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
H510

Memory
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics
1 x D-Sub
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of [email protected], others will only support HDMI™ 1.4 with max. resolution of [email protected] Please refer to www.intel.com for any updates.

Expansion Slots
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
1 x PCIe 3.0 x1 slot

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

Ethernet
ASUS LANGuard

USB
Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB:Total 4 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User manual

Form Factor
microATX
22.6cm x 20.3cm


Zaradenie produktu



Stránky o produkte:

https://www.asus.com/sk/Motherboards-Components/Motherboards/PRIME/PRIME-H510M-D/


Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.









Parametre





Základné parametre
Určenie:  Pre stolné počítače
Formát:  mATX

Procesor
CPU Socket:  Socket LGA 1200
Označenie chipsetu:  Intel H510 Chipset

Grafická karta
Podpora integrovanej grafiky:  Áno

Pamäť
Typ pamäte:  DDR4
Počet slotov RAM:
Maximálna rozšíriteľnosť RAM :  64 GB

Interné rozhrania
PCI Express x16:
M.2 slot:
TPM:

Backplane
USB 3:
USB3 (Type-C):
USB 2:
PS/2 - klávesnica:
PS/2 - myš:
PS/2 - kombinovaný:
DVI-D:
D-Sub (VGA):
HDMI:
DisplayPort:
RJ-45:
Line-In (jack 3,5mm):
Line-Out (jack 3,5mm):
Mic-In (jack 3,5mm):

Komunikačné rozhrania
LAN (RJ-45):  1Gb

Záruka
Záruka zákazník s IČO / Konečný spotrebiteľ:  36/36M
