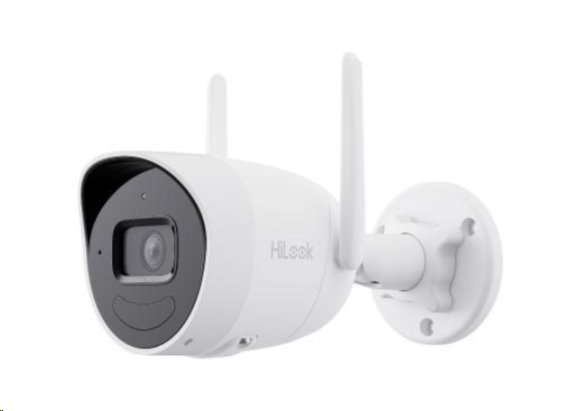

HiLook IPC-B140HA-D/W(W)(2.8mm) - WiFi kamera

Popis produktu:

Camera
Image Sensor
1/2.9" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/25 s to 1/10000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°

4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°

Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1 m to ?

4 mm: 1.5 m to ?

DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type
IR
IR Wavelength
850 nm
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

Video Compression
Main stream: H.265/H.264,

Sub-stream: H.265/H.264

Video Bit Rate
256 Kbps to 2 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711,AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz,16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
Simultaneous Live View
Up to 4 channels
API
ONVIF, SDK
Security
Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
User/Host
Only one user: administrator
Client
iVMS-4200, HiLookVision, Hik-Partner-Pro
Wi-Fi
Transfer Rate
11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
Wi-Fi Protocol
802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range
2.412 GHz to 2.472 GHz
Channel Bandwidth
20 MHz
Modulation
802.11b: CCK,QPSK,BPSK,,802.11g: OFDM,,802.11n: OFDM
Wireless Range
Up to 120 m

(The performance varies based on actual environment)

Encryption Mode
WPA-PSK/WPA2-PSK
Antenna
2 Antennas
Image Settings
Saturation, brightness, contrast, and sharpness adjustable by client software
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
Digital WDR
Privacy Mask
4 programmable polygon privacy masks
Interface
Built-in Microphone
Yes
Built-in Speaker
Yes
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
Linkage
Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite

General
Power
12 VDC ± 25%, 0.58 A, max. 7 W,O5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language
English
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
heartbeat,mirror
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material
Front cover: metal, back cover: plastic
Dimension
175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension
260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Approx. 345 g (0.8 lb.)
With Package Weight
Approx. 635 g (1.4 lb.)
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

RF
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
Safety
CE-LVD: EN 62368-1: 2014/A11: 2017,

CB: IEC 62368-1: 2014+A11

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU

Protection
IP66: IEC 60529-2013
