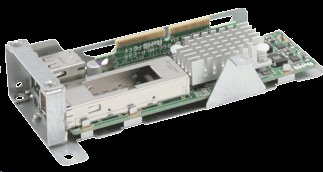

Supermicro AOM-CIBF-M1M InfiniBand FDR Adapter

Popis produktu:

Compact and Powerful InfiniBand FDR Adapter

The AOM-CIBF-M1M is the most compact, yet powerful, InfiniBand adapter in the market. Based on Mellanox® ConnectX-3 with Virtual Protocol Interconnect (VPI), it provides the highest performing and most flexible interconnect solution for servers used in Enterprise Data Centers and High-Performance Computing. The AOM-CIBF-M1M simplifies the system development by serving both InfiniBand and Ethernet fabrics in one hardware design. The AOM-CIBF-M1M comes pre-assembled with a riser card and bracket, and is designed in a small microLP form factor to fit Supermicro 12 node MicroCloud server systems.


This product is only available through Supermicro.
To order, contact your distributor.


Key Features


• Single QSFP Connector
• MicroLP Form Factor
• PCI Express 3.0 (up to 8GT/s)
• Virtual Protocol Interconnect (VPI)
• 1µs MPI ping latency
• Up to 56Gbps InfiniBand or 40Gbps Ethernet
• CPU offload of transport operations
• Application offload
• GPU communication acceleration
• End-to-end QoS and congestion control
• Hardware-based I/O virtualization
• Ethernet encapsulation (EoIB)
• RoHS compliant 6/6

Compliance

RoHS
RoHS 6/6
RoHS Compliant 6/6, Pb Free

Downloads

User's Guide [ Download ] (2.18MB)
Datasheet [ Download ]
Driver [ Download ]
Firmware [ Download ]
Matrices [ MicroLP Compatibility Matrix ]



Specification


• General
  - Mellanox® ConnectX-3 FDR controller
  - Compact size microLP form factor
  - Single QSFP port and dual USB 2.0 ports
  - PCI-E 3.0 x8 (8GT/s) interface

• Connectivity
  - Interoperable with InfiniBand or 10/40GbE switches
  - Passive copper cable with ESD protection
  - Powered connectors for optical and active cable support

• InfiniBand
  - IBTA Specification 1.2.1 compliant
  - Hardware-based congestion control
  - 16 million I/O channels
  - 256 to 4Kbyte MTU, 1Gbyte messages

• Enhanced InfiniBand
  - Hardware-based reliable transport
  - Collective operations offloads
  - GPU communication acceleration
  - Hardware-based reliable multicast
  - Extended Reliable Connected transport
  - Enhanced Atomic operations

• Ethernet
  - IEEE Std 802.3ae 10 Gigabit Ethernet
  - IEEE Std 802.3ba 40 Gigabit Ethernet
  - IEEE Std 802.3ad Link Aggregation and Failover
  - IEEE Std 802.3az Energy Efficient Ethernet
  - IEEE Std 802.1Q, .1p VLAN tags and priority
  - IEEE Std 802.1Qau Congestion Notification
  - IEEE P802.1Qaz D0.2 ETS
  - IEEE P802.1Qbb D1.0 Priority-based Flow Control
  - Jumbo frame support (9.6KB)

• Hardware-based I/O Virtualization
  - Single Root IOV
  - Address translation and protection
  - Dedicated adapter resources
  - Multiple queues per virtual machine
  - Enhanced QoS for vNICs
  - VMware NetQueue support

• Manageability Features
  - Additional CPU Offloads
  - RDMA over Converged Ethernet
  - TCP/UDP/IP stateless offload
  - Intelligent interrupt coalescence

• Flexboot™ Technology
  - Remote boot over InfiniBand
  - Remote boot over Ethernet
  - Remote boot over iSCSI

• Protocol Support
  - Open MPI, OSU MVAPICH, Intel MPI, MS
  - MPI, Platform MPI
  - TCP/UDP, EoIB, IPoIB, SDP, RDS
  - SRP, iSER, NFS RDMA
  - uDAPL

• Operating Systems/Distributions
  - Novell SLES, Red Hat Enterprise Linux (RHEL),
    and other Linux distributions
  - Microsoft Windows Server 2008/CCS 2003, HPC Server 2008
  - OpenFabrics Enterprise Distribution (OFED)
  - OpenFabrics Windows Distribution (WinOF)
  - VMware ESX Server 3.5, vSphere 4.0/4.1

• Operating Conditions
  - Operating temperature: 0°C to 55°C (32°F to 131°F)

• Physical Dimensions (L x W x D)
  - Card PCB dimensions (without end brackets):
    12.8cm (5.04in) x 5.0cm (1.97in) x 2.35cm (0.93in)

Supported Platforms

Servers
Supermicro Twin Server Systems with microLP expansion slot




Parts List

Part Number Qty Description
Add-on Card AOM-CIBF-M1M 1 MicroLP InfiniBand FDR Adapter
Bracket MCP-240-93908-0N 1 MircoLP CM assembly KIT (AOC-CIBF-M1M)
Riser Card RSC-MLP-E8R 1 MicroLP Riser card for 12 Node MicroCloud
Driver Disk CDR-NIC 1 Driver and Software CDROM
