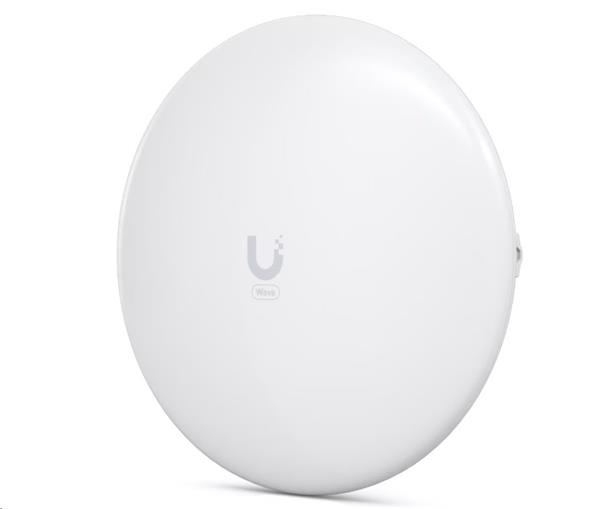

Ubiquiti 60 GHz PtMP station powered by Wave Technology.

Popis produktu:

Technical Specifications
Mechanical

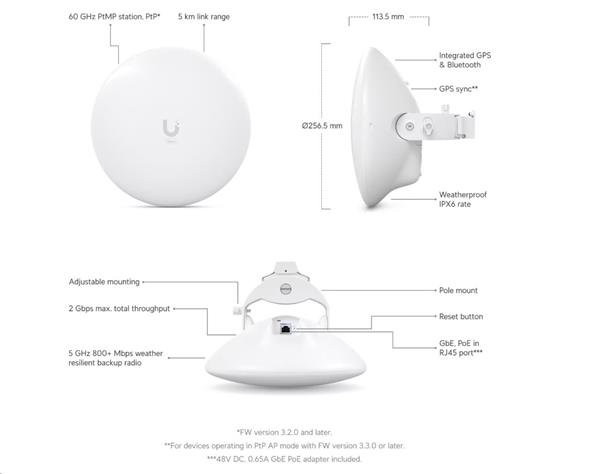

Dimensions
?256.5 x 113.5 mm
(?10.1 x 4.5")
Weight
Without mount: 932 g (2.1 lb)
With mount: 1.2 kg (2.6 lb)
Enclosure Material
Aluminum alloy, UV stabilized polycarbonate

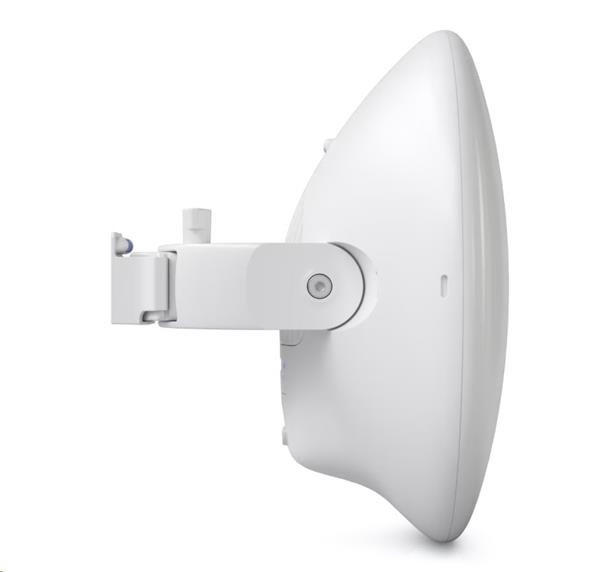

Mount Material
Aluminum alloy, UV stabilized polycarbonate
Mounting
Pole Mount
Pole Mount Diameter
25 to 63.5 mm (1 to 2.5")
Wind Loading
127 N at 200 km/h (28.6 lbf at 125 mph)
Weatherproofing
IPX6

Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory
512 MB
Networking Interface
(1) GbE RJ45 port
Max. Power Consumption
20W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC
22–27V DC
Power Supply
48V DC, 0.65A gigabit PoE adapter (Included)
GPS
Yes
Buttons
(1) Factory reset

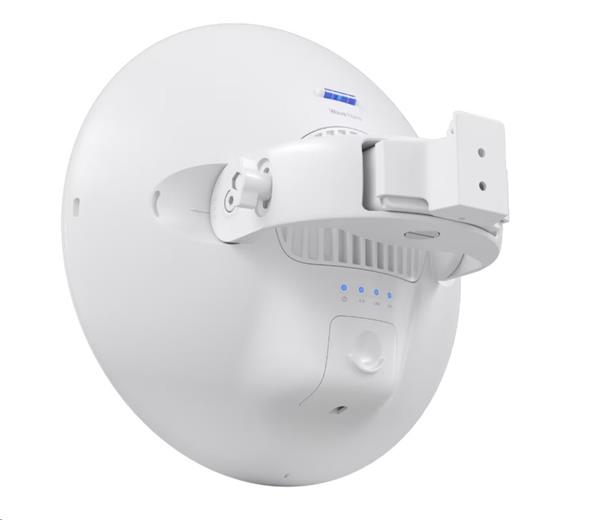

LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet
Flashing blue: Ethernet traffic detected
GPS
Blue: receiving at least (4) GPS satellite signal
Link
White: 5 GHz link
Blue: 60 GHz link
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE

Software
Operating Modes
PtP
PtMP Station
Ubiquiti Specific Features
Discovery Protocol
Yes
Traffic Shaping with Burst Support
Yes
Services
UISP
Yes
Ping Watchdog
Yes
NTP Client
Yes
SNMP
Yes
Tools
Cable Test
Yes
Wave AI
Yes
Wave Technology
Yes
Utilities
Antenna Alignment
Yes
Ping
Yes
Site Survey
Yes
Speed Test
Yes
Traceroute
Yes
Network
Bridge/Router mode
Application Requirements
UISP
Version 1.4.5 and later

System
Total Throughput
2 Gbps
Max. Range
5+ km (3.1 mi)
Encryption
WPA2-PSK (AES)

Radio Frequency
Operating Frequency
Worldwide
57–71 GHz
Channel Bandwidth
2160, 1080, 540 MHz
Operating Channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation
16QAM, QPSK
Antenna Gain
41 dBi
Polarization
Vertically-Linear
Beamwidth
Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4°

Radio Frequency (Back-Up)
WiFi Standard
802.11ax (WiFi 6)
Operating Frequency
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
Channel Bandwidth
20, 40, 80 MHz
Modulation
BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna Gain
19 dBi
Polarization
Dual-Linear
Beamwidth
Azimuth: 3 dB 14°
Elevation: 3 dB 14°
Cross-Pol Isolation
20 dB
